CHASSIS OK/JR - OK mod.ESCAPE 2026 tube Ø32-30mm wheelbase 1050mm CIK/FIA 015-CH-03 - NEW HOMOLOGATION 2025/27
INT0101062
CHASSIS DESCRIPTION:
The ESCAPE chassis is designed to achieve great performance with medium-hard compound tyres. Its frame is composed of Ø30 tubes for the nose and cross-members, and Ø32 tubes for the side members. This gives flexibility and stability to the frame, allowing excellent grip without compromising smoothness. Suitable for the categories OK, OK JUNIOR, OKN, OKN JUNIOR and all single-gear categories.
DOWNLOAD TECHNICAL SHEET
STANDARD CONFIGURATION:
- BODYWORKS mod.509 col. BLACK with REAR SPOILER
- STICKERS KIT for BODYWORKS mod.509 mod. 2026

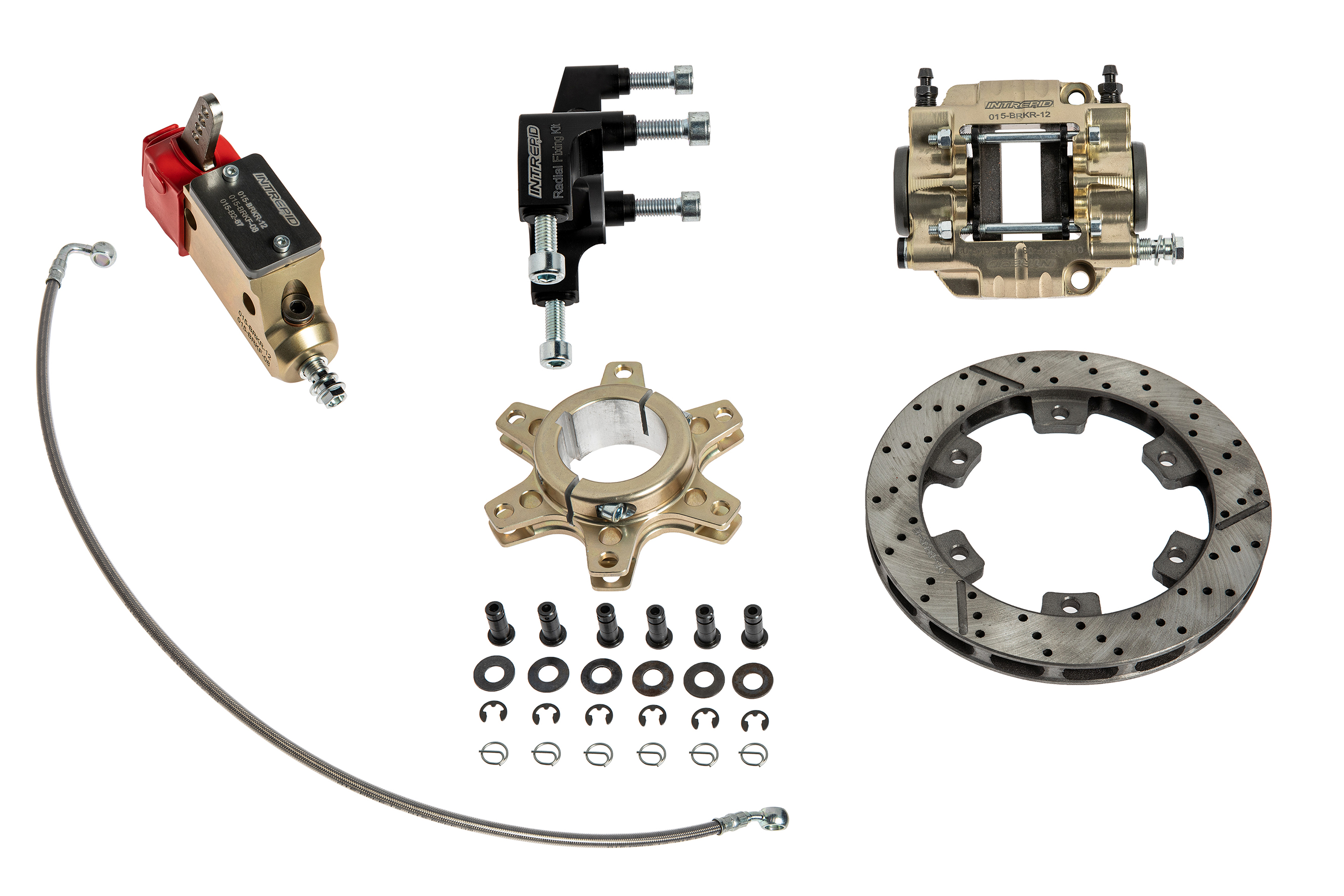

- REAR BRAKE SYSTEM OK mod.R8K CIK/FIA 015-BRKR-12
- AXLE Ø50x1030mm - mod.T2 - MEDIUM
- REAR HUB Ø50x90mm - CH.6mm - ALUMINIUM
- FRONT HUB mod.OK Ø42X80mm - ALUMINIUM
- MAGNESIUM WHEEL RIMS L. 132/212 with HOLES - BLACK
- FLOOR PLATE mod.OK with STICKERS INTREPID MOD.2026
- SEAT RACING SILVER (size 2 30,5cm.)
- STEERING WHEEL in ALCANTARA - 4 SPOKES
- ADJUSTABLE FOOTREST SYSTEM - ALUMINIUM
- ALUMINIUM PEDALS - 2026 DESIGN

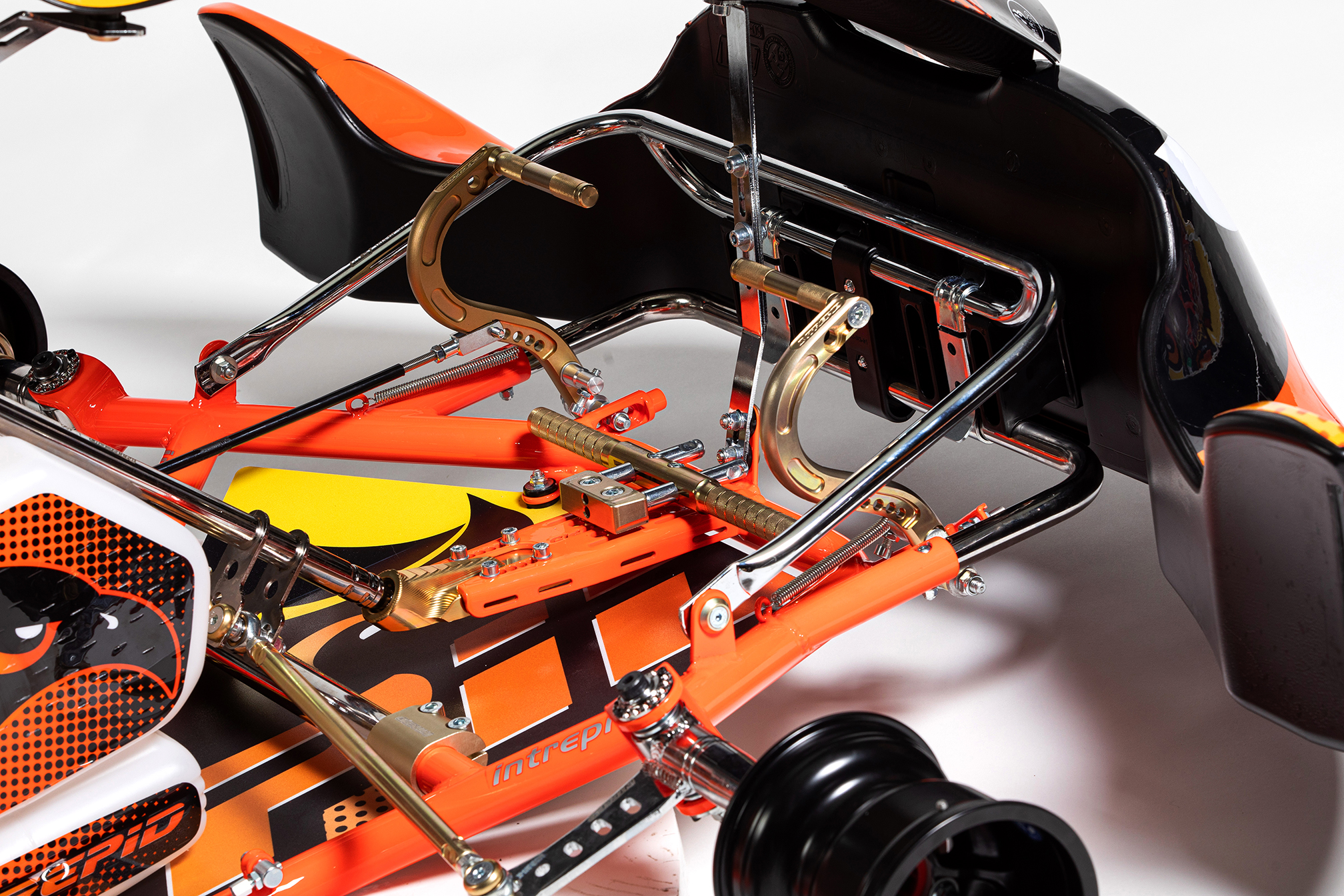

FRAME DESCRIPTION:
NOUSE: chromium tube Ø32mm
SIDE: chromium tube Ø30mm
CENTRAL CROSS PIECES: chromium tube Ø32mm
REAR CROSS PIECES: chromium tube Ø32mm
WHEELBASE: 1045mm
