CHASSIS OK/JR - OK mod.ESCAPE-17 tube Ø32-30mm wheelbase 1050mm CIK/FIA 015-CH-03 *** MAGNESIUM CONFIGURATION*** MOD 2026
INT0103011
CHASSIS DESCRIPTION:

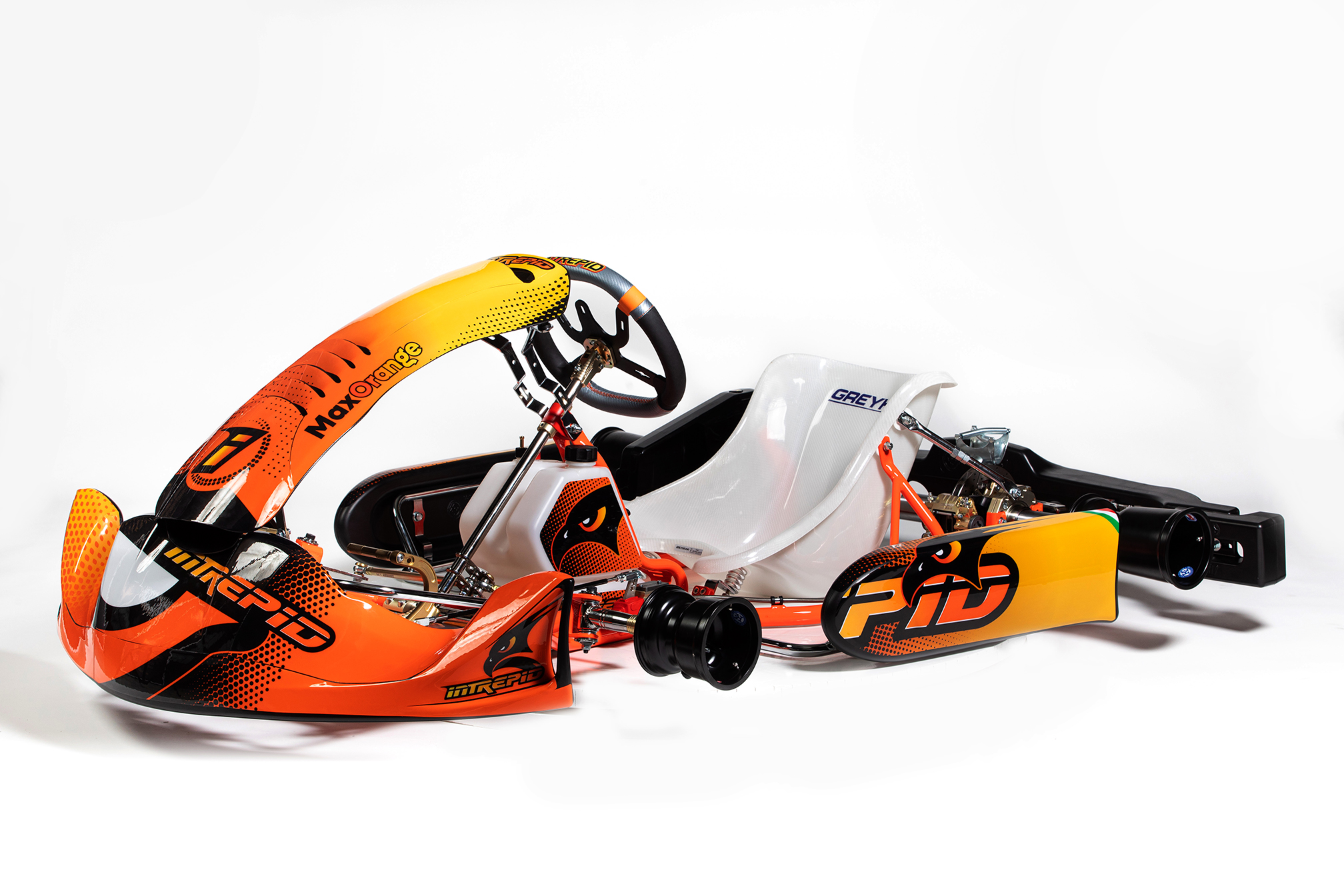

The ESCAPE-17 chassis is designed to achieve great performance with medium-hard compound tyres. Its frame is composed of Ø30 tubes for the nose and cross-members, and Ø32 tubes for the side members. This gives flexibility and stability to the frame, allowing excellent grip without compromising smoothness. The magnesium version makes the chassis lighter and guarantees more consistent performance, especially in seasons with high temperatures. In addition, the magnesium bearing support favour load transfer in bends.
MAGNESIUM COMPONENTS: Bearing bush supports, front hubs, rear hubs, sprocket support
DOWNLOAD TECHNICAL SHEET
STANDARD CONFIGURATION:
- BODYWORKS mod.509 col. BLACK with REAR SPOILER
- STICKERS KIT for BODYWORKS mod.509 mod 2026
- REAR BRAKE SYSTEM mod.R6K CIK/FIA 015-B2-06
- AXLE Ø50x1030mm - mod.T2 - MEDIUM
- REAR HUB Ø50x90mm - CH.6mm - MAGNESIUM
- FRONT HUB mod.OK L.80mm - BEARING Ø25mm - MAGNESIUM
- MAGNESIUM WHEEL RIMS L. 132/212 with HOLES - BLACK
- FLOOR PLATE mod.OK with STICKERS INTREPID
- SEAT RACING SILVER (size 2 30,5cm.)
- STEERING WHEEL mod.ANATOMIC with LAP TIMER SUPPORT INTEGRATED
- ALLUMINIUM PEDALS MODEL 2026
- BEARING BUSH SUPPORT Ø50mm - MAGNESIUM
- SPROCKET SUPPORT Ø50 - MAGNESIUM
FRAME DESCRIPTION:
NOUSE: chromium tube Ø32mm
SIDE: chromium tube Ø30mm
CENTRAL CROSS PIECES: chromium tube Ø32mm
REAR CROSS PIECES: chromium tube Ø32mm
WHEELBASE: 1050mm.
