KZ CHASSIS mod.MATRIX 2026 tube Ø30-32mm WHELLBASE 1048mm CIK-FIA 015-CH-65 - NEW HOMOLOGATION 2025-27
INT0101054
CHASSIS DESCRIPTION:
The MATRIX chassis is a high-performance vehicle suitable for tracks with little grip, thanks to the frame composed of Ø30 tubes excluding the rear crossbar composed of Ø32 tubes which provides greater traction. Suitable for the categories KZ2 - KZ - KZN - KZ MASTER and all shifter categories.
DOWNLOAD TECHNICAL SHEET
STANDARD CONFIGURATION:
- BODYWORKS mod.509 col. BLACK with REAR SPOILER
- STICKERS KIT for BODYWORKS mod.509 mod.2026

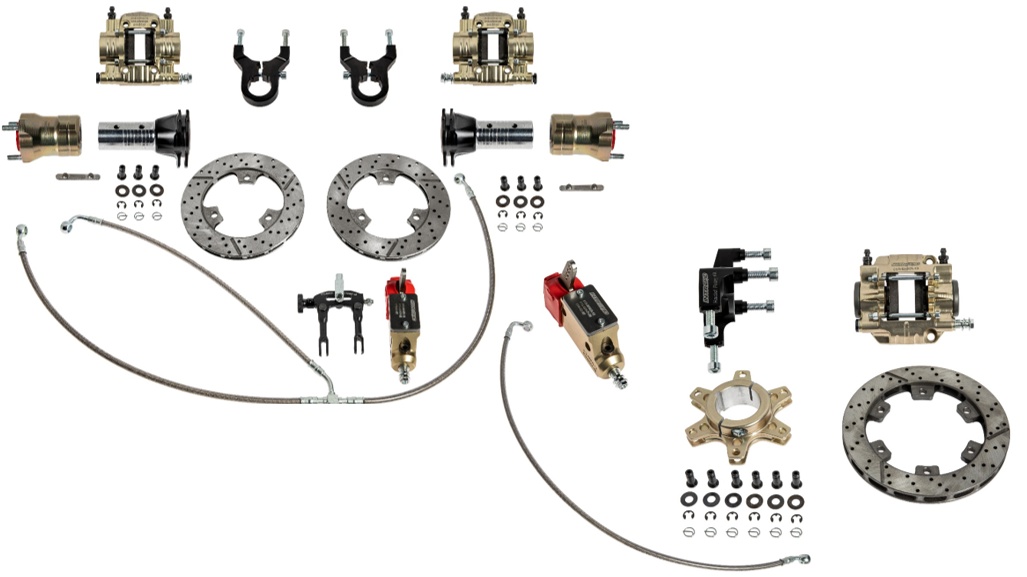

- REAR BRAKE SYSTEM KZ mod.R8K CIK/FIA 015-BRKR-12
- FRONT BRAKE SYSTEM KZ mod. R8KZ CIK/FIA 015-BRKF08
- AXLE Ø50x1030mm - mod.T2 - MEDIUM
- REAR HUB Ø50x90mm - CH.6mm - ALUMINIUM
- FRONT HUB mod.KZ Ø42X80mm - ALUMINIUM
- WHEEL RIMS L. 132/212 WITH HOLES - BLACK
- FLOOR PLATE mod.KZ with STICKERS INTREPID MOD. 2026
- SEAT RACING SILVER (size 2 30,5cm.)
- STEERING WHEEL in ALCANTARA - 4 SPOKES
- ADJUSTABLE FOOTREST SYSTEM - ALUMINIUM
- ALUMINIUM PEDALS - 2026 DESIGN

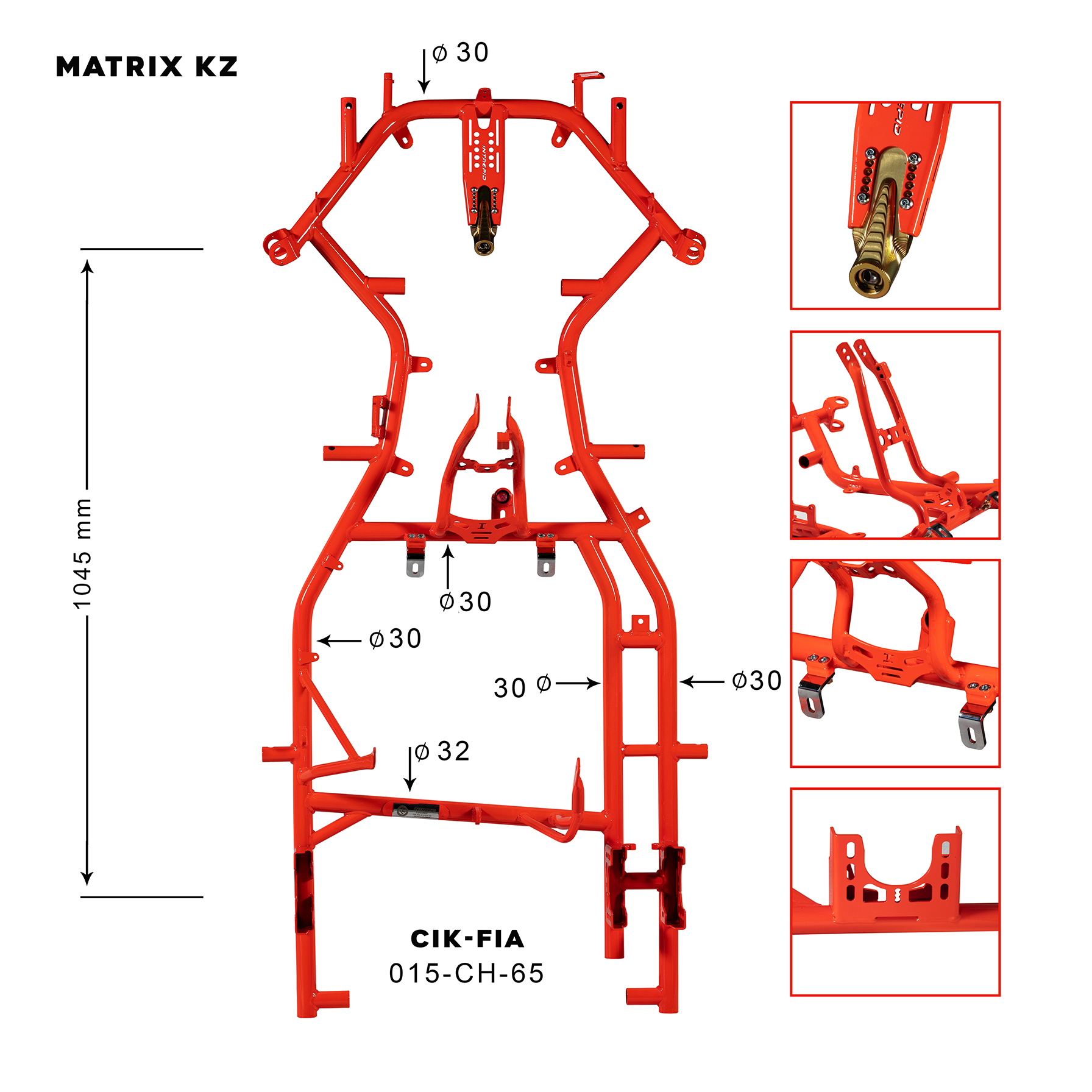

FRAME DESCRIPTION:
NOUSE: chromium tube Ø30mm
SIDE: chromium tube Ø30mm
CENTRAL CROSS PIECES: chromium tube Ø30mm
REAR CROSS PIECES: chromium tube Ø32mm
WHEELBASE: 1045mm.
