KZ CHASSIS mod.EXPLORER 2026 tube Ø32mm WHELLBASE 1045 CIK/FIA 015-CH-10 - NEW HOMOLOGATION 2025/27
INT0101056
CHASSIS DESCRIPTION:
The EXPLORER chassis is designed to achieve great performance with medium-hard compound tyres. Its frame is composed entirely of Ø32 nose tube, crossmembers and side members. This gives flexibility and stability to the body, allowing excellent grip without compromising smoothness. Suitable for the following categories: KZ2 - KZ - KZN - KZ MASTER and all shifter categories
DOWNLOAD TECHNICAL SHEET
STANDARD CONFIGURATION:
- BODYWORKS mod.509 col. BLACK with REAR SPOILER
- STICKERS KIT for BODYWORKS mod.509 mod.2026

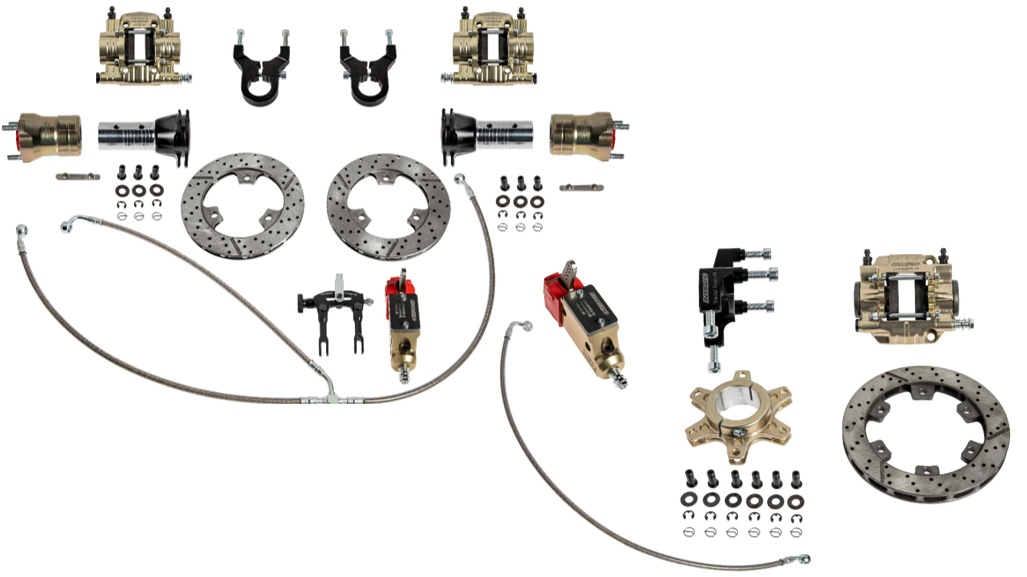

- REAR BRAKE SYSTEM KZ mod.R8K CIK/FIA 015-BRKR-12
- FRONT BRAKE SYSTEM KZ mod. R8KZ CIK/FIA 015-BRKF08
- AXLE Ø50x1030mm - mod.T2 - MEDIUM
- REAR HUB Ø50x90mm - CH.6mm - ALUMINIUM
- FRONT HUB mod.KZ Ø42X80mm - ALUMINIUM
- WHEEL RIMS L. 132/212 WITH HOLES - BLACK
- FLOOR PLATE mod.KZ with STICKERS INTREPID MOD. 2026
- SEAT RACING SILVER (size 2 30,5cm.)
- STEERING WHEEL in ALCANTARA - 4 SPOKES
- ADJUSTABLE FOOTREST SYSTEM - ALUMINIUM
- ALUMINIUM PEDALS - 2026 DESIGN

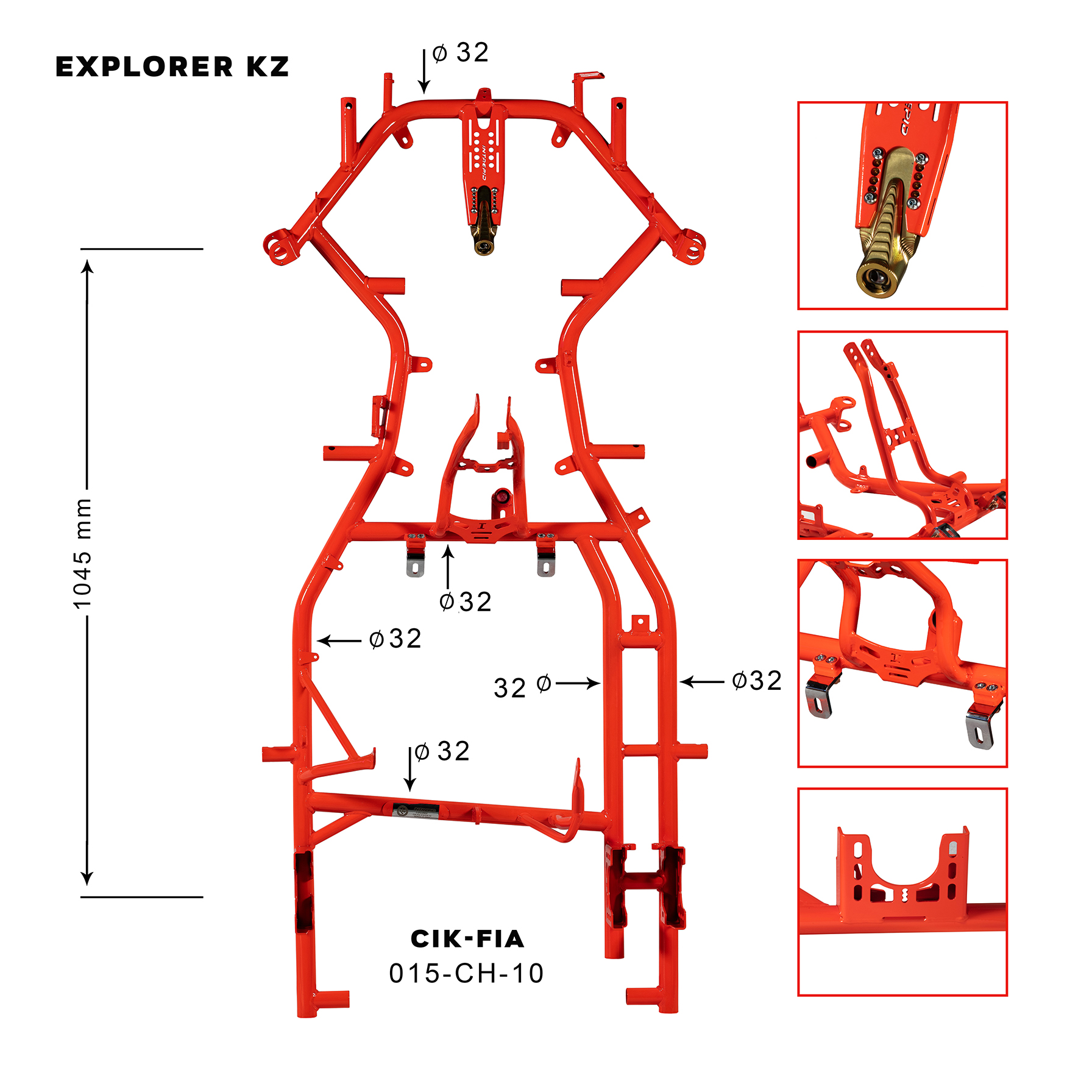

FRAME DESCRIPTION:
NOUSE: chromium tube Ø32mm
SIDE: chromium tube Ø32mm
CENTRAL CROSS PIECES: chromium tube Ø32mm
REAR CROSS PIECES: chromium tube Ø32mm
WHEELBASE: 1045mm.
