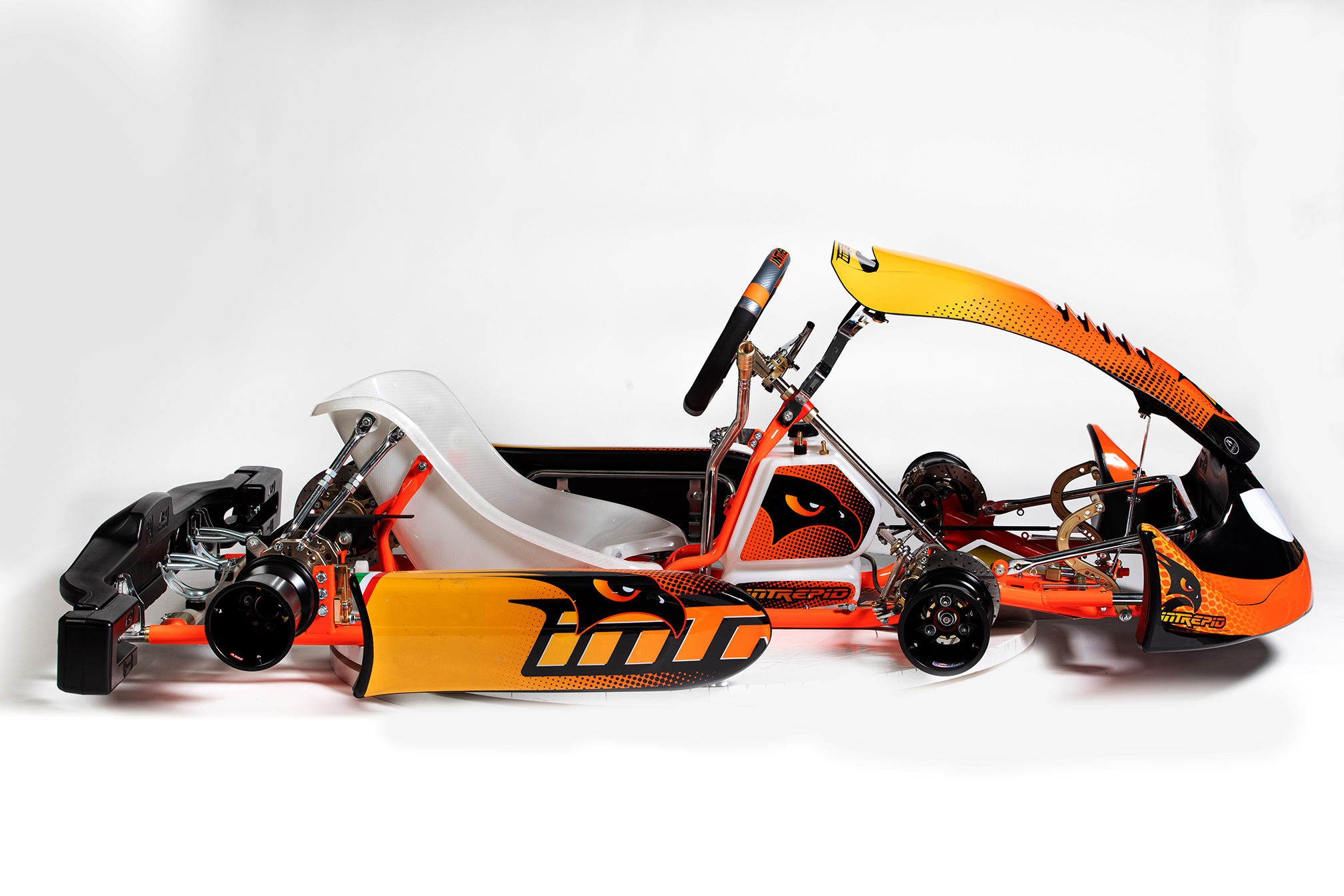

KZ CHASSIS mod.ESCAPE 2026 tube Ø32-30mm wheelbase 1050mm CIK/FIA 015-CH-03 - NEW HOMOLOGATION 2025/27
INT0101055
CHASSIS DESCRIPTION:
The ESCAPE chassis is designed to achieve great performance with medium-hard compound tyres. Its frame is composed of Ø32 tubes for the nose and cross-pieces, and Ø30 tubes for the side. This gives flexibility and stability to the frame, allowing excellent grip without compromising smoothness. Suitable for the categories KZ2 - KZ - KZN - KZ MASTER and all shifter categories.
DOWNLOAD TECHNICAL SHEET
STANDARD CONFIGURATION:
- BODYWORKS mod.509 col. BLACK with REAR SPOILER
- STICKERS KIT for BODYWORKS mod.509 mod.2026

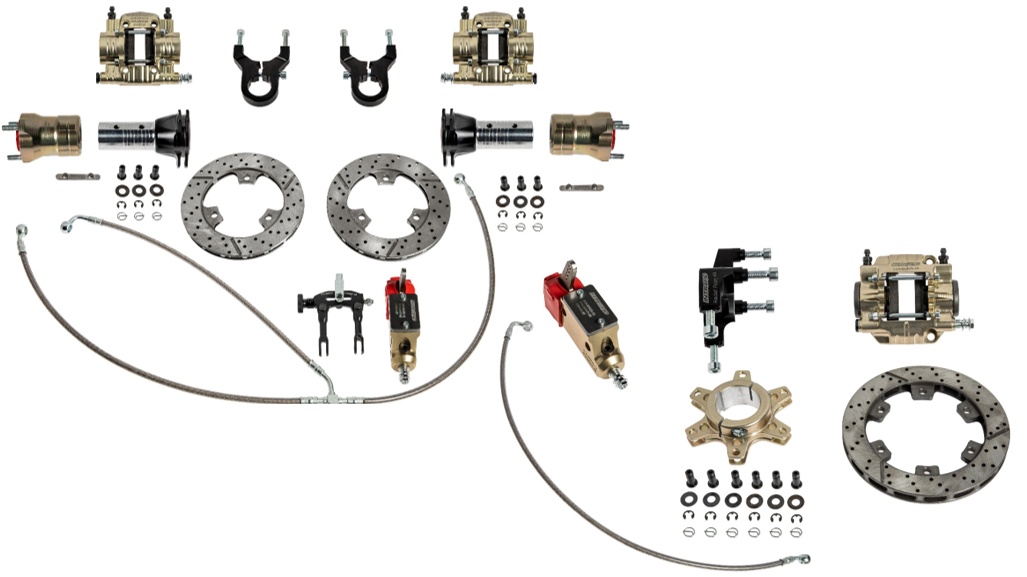

- REAR BRAKE SYSTEM KZ mod.R8K CIK/FIA 015-BRKR-12
- FRONT BRAKE SYSTEM KZ mod. R8KZ CIK/FIA 015-BRKF08
- AXLE Ø50x1030mm - mod.T2 - MEDIUM
- REAR HUB Ø50x90mm - CH.6mm - ALUMINIUM
- FRONT HUB mod.KZ Ø42X80mm - ALUMINIUM
- WHEEL RIMS L. 132/212 WITH HOLES - BLACK
- FLOOR PLATE mod.KZ with STICKERS INTREPID MOD. 2026
- SEAT RACING SILVER (size 2 30,5cm.)
- STEERING WHEEL in ALCANTARA - 4 SPOKES
- ADJUSTABLE FOOTREST SYSTEM - ALUMINIUM
- ALUMINIUM PEDALS - 2026 DESIGN

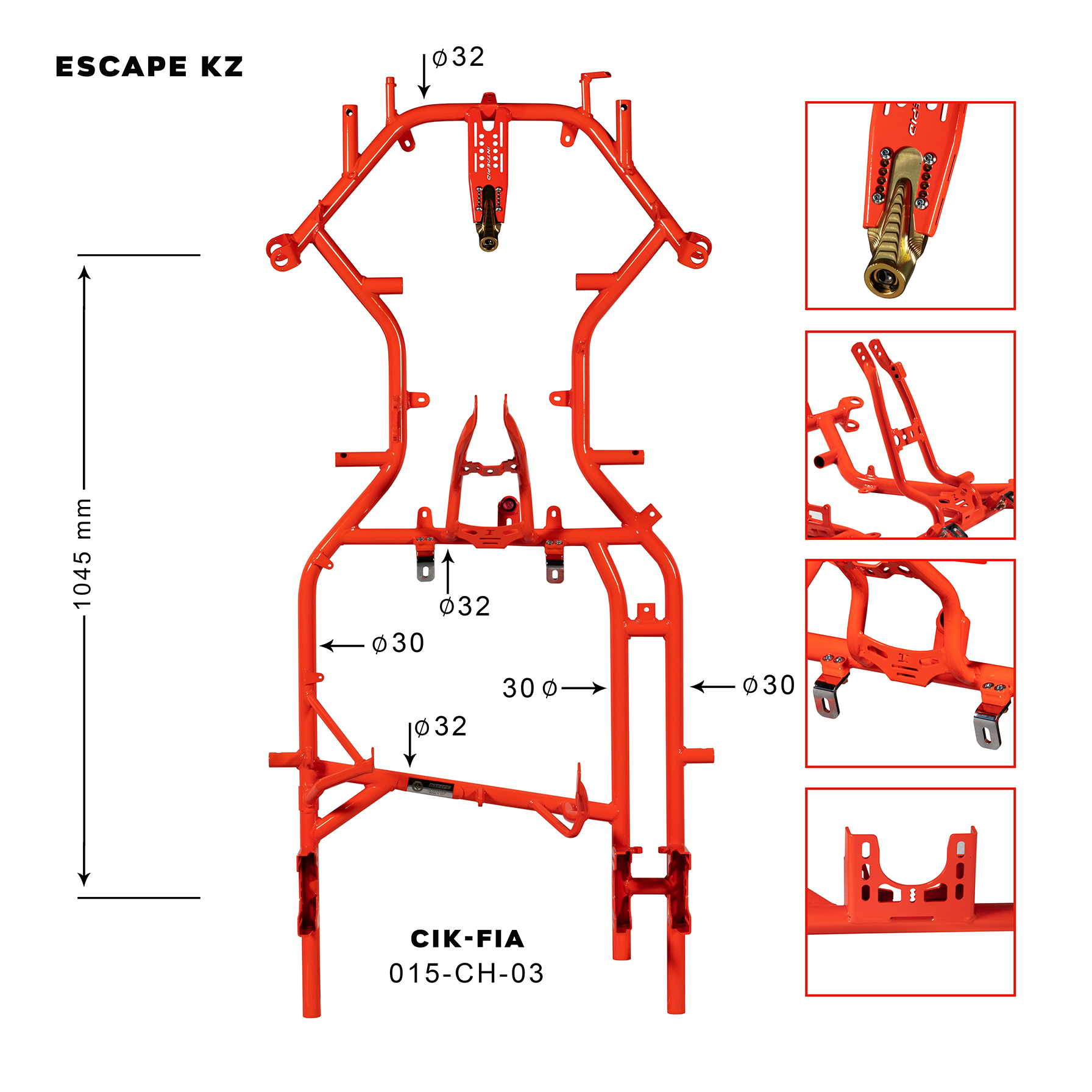

FRAME DESCRIPTION:
NOUSE: chromium tube Ø32mm
SIDE: chromium tube Ø30mm
CENTRAL CROSS PIECES: chromium tube Ø32mm
REAR CROSS PIECES: chromium tube Ø32mm
WHEELBASE: 1045mm.
