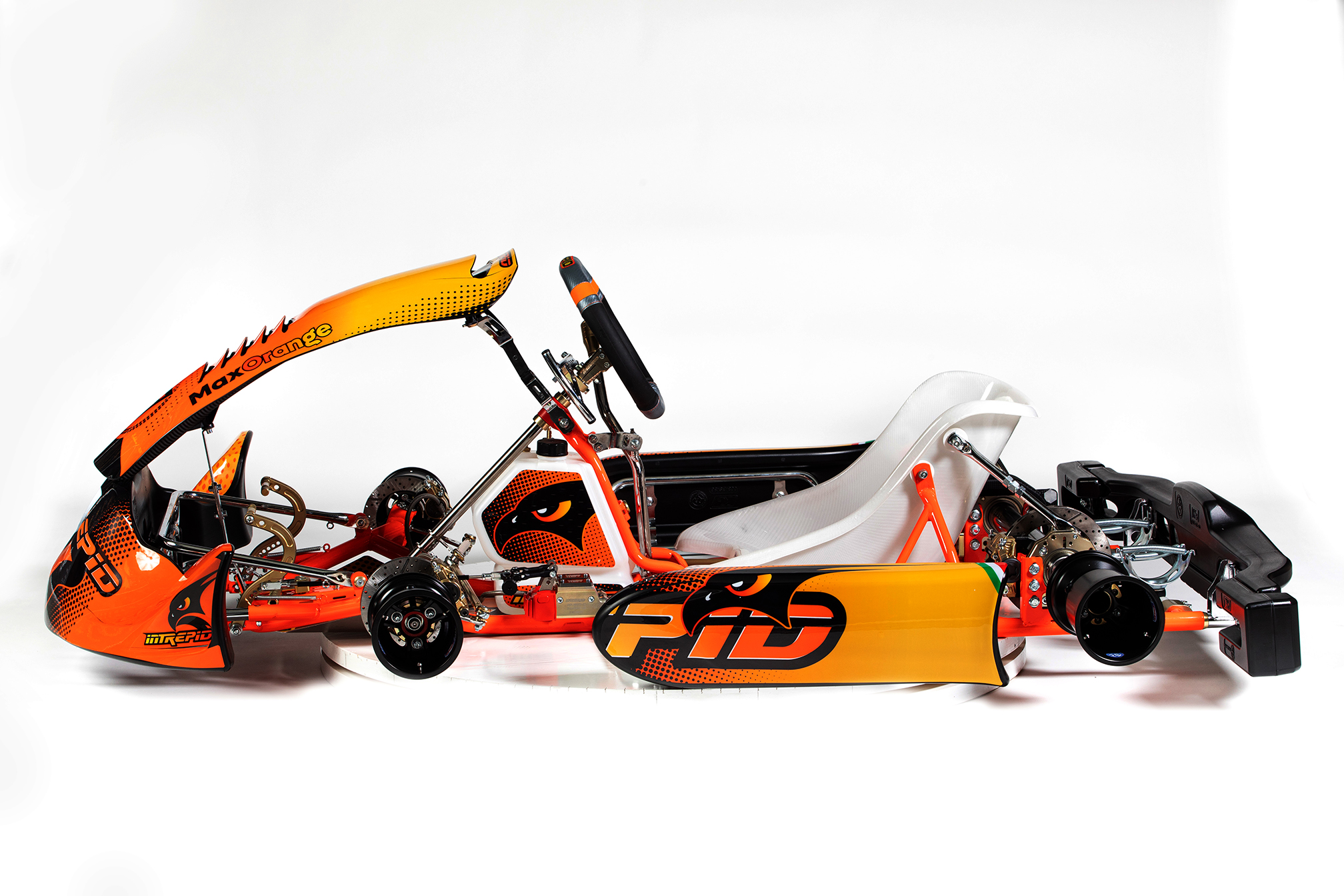

DD2 CHASSIS mod.ESCAPE-17 tubo Ø32-30mm wheelbase 1050mm
INT0101043
CHASSIS DESCRIPTION:
The ESCAPE-17 chassis is designed to achieve great performance with medium-hard compound tyres. Its frame is composed of Ø30 tubes for the nose and cross-members, and Ø32 tubes for the side members. This gives flexibility and stability to the frame, allowing excellent grip without compromising smoothness. The frame structure was designed to specifications to accommodate the Rotax DD2 engine and features a single bearing support on the left side.
Suitable for the categories ROTAX DD2.
DOWNLOAD TECHNICAL SHEET
FRAME DESCRIPTION:
NOUSE: chromium molybdenum tube Ø3mm
SIDE: chromium molybdenum tube Ø30mm
CENTRAL CROSS PIECES: chromium molybdenum tube Ø32mm
REAR CROSS PIECES: chromium molybdenum tube Ø32mm
WHEELBASE: 1050mm.
STANDARD CONFIGURATION:
- BODYWORKS mod.507/508 col. BLACK with REAR SPOILER
- STICKERS KIT for BODYWORKS mod.507/508
- REAR BRAKE SYSTEM mod.R6K CIK/FIA 015-B2-06
- FRONT BRAKE SYSTEM mod. R6KZ CIK/FIA 015-B4-20
- AXLE Ø40x1040mm - mod.T2 - MEDIUM
- REAR HUB Ø40x120mm - CH.mm - ALUMINIUM
- FRONT HUB mod.KZ Ø42X80mm - ALUMINIUM
- FRONT HUBS DISK SUPPORT
- MAGNESIUM WHEEL RIMS L. 132/212 WITH HOLES - BLACK
- FLOOR PLATE mod.KZ with STICKERS INTREPID
- SEAT RACING SILVER (size 2 30,5cm.)
- STEERING WHEEL in ALCANTARA - 4 SPOKES
- STEERING COLUMN - 490x28mm
- SPEENDLES Ø25mm 10,25° mod.H1K KZ
- ADJUSTABLE FOOTREST SYSTEM - ALUMINIUM
- PEDAL CHROME PLATED STEEL
- HIGH QUALITY ALUMINUM COMPONENTS
