CHASSIS OK mod.EXPLORER 2026 tube Ø32mm WHELLBASE 1045 CIK/FIA 015-CH-10 - NEW HOMOLOGATION 2025/27
INT0101063
CHASSIS DESCRIPTION:
The EXPLORER chassis is designed to achieve great performance with medium-hard compound tyres. Its frame is composed entirely of Ø32 nose tube, crossmembers and side members. This gives flexibility and stability to the frame, allowing excellent grip without compromising smoothness. Suitable for the categories OK, OK JUNIOR, OKN, OKN JUNIOR and all single-gear categories.
DOWNLOAD TECHNICAL SHEET
STANDARD CONFIGURATION:
- BODYWORKS mod.509 col. BLACK with REAR SPOILER
- STICKERS KIT for BODYWORKS mod.509 mod. 2026

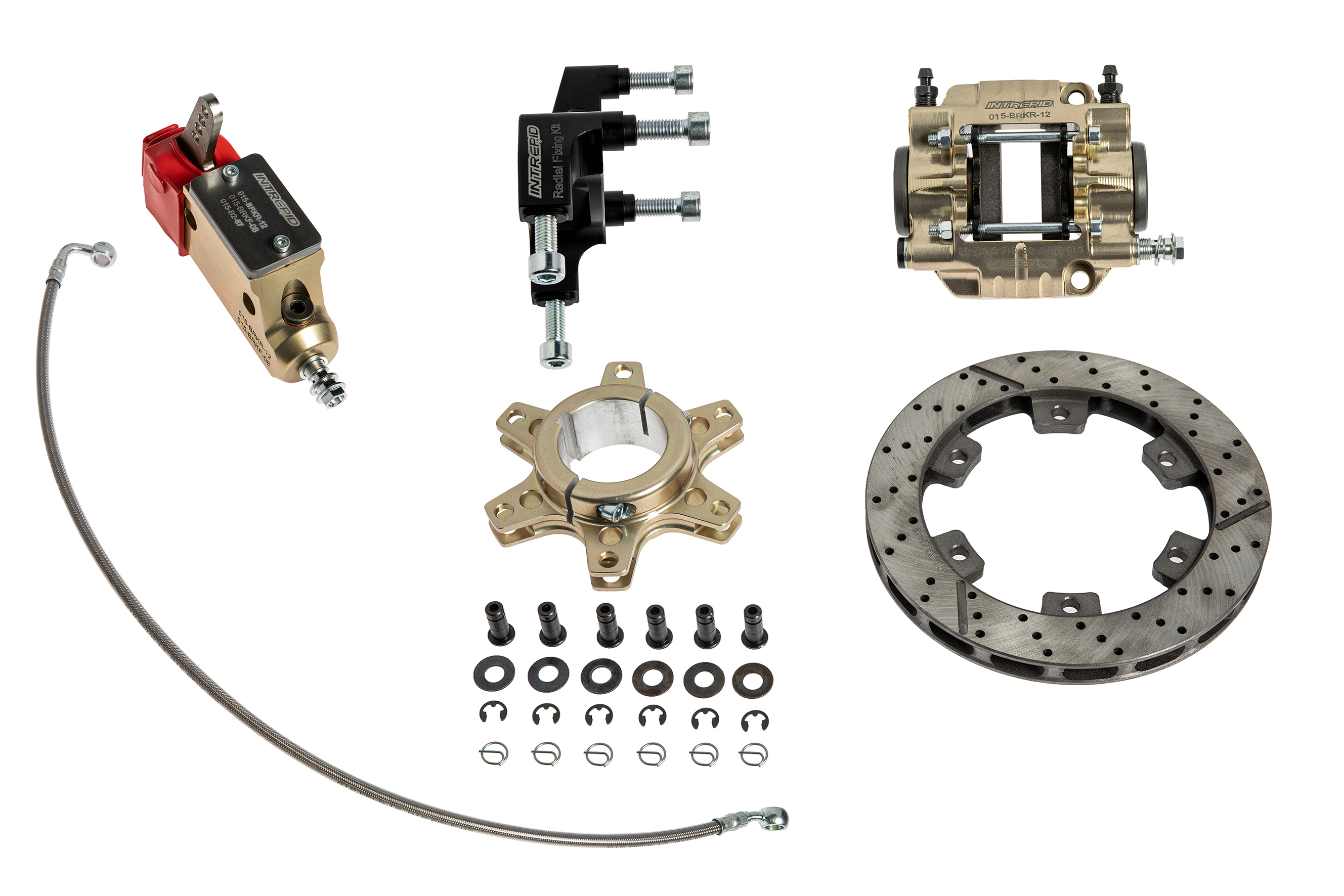

- REAR BRAKE SYSTEM OK mod.R8K CIK/FIA 015-BRKR-12
- AXLE Ø50x1030mm - mod.T2 - MEDIUM
- REAR HUB Ø50x90mm - CH.6mm - ALUMINIUM
- FRONT HUB mod.OK Ø42X80mm - ALUMINIUM
- MAGNESIUM WHEEL RIMS L. 132/212 with HOLES - BLACK
- FLOOR PLATE mod.OK with STICKERS INTREPID MOD.2026
- SEAT RACING SILVER (size 2 30,5cm.)
- STEERING WHEEL in ALCANTARA - 4 SPOKES
- ADJUSTABLE FOOTREST SYSTEM - ALUMINIUM
- ALUMINIUM PEDALS - 2026 DESIGN

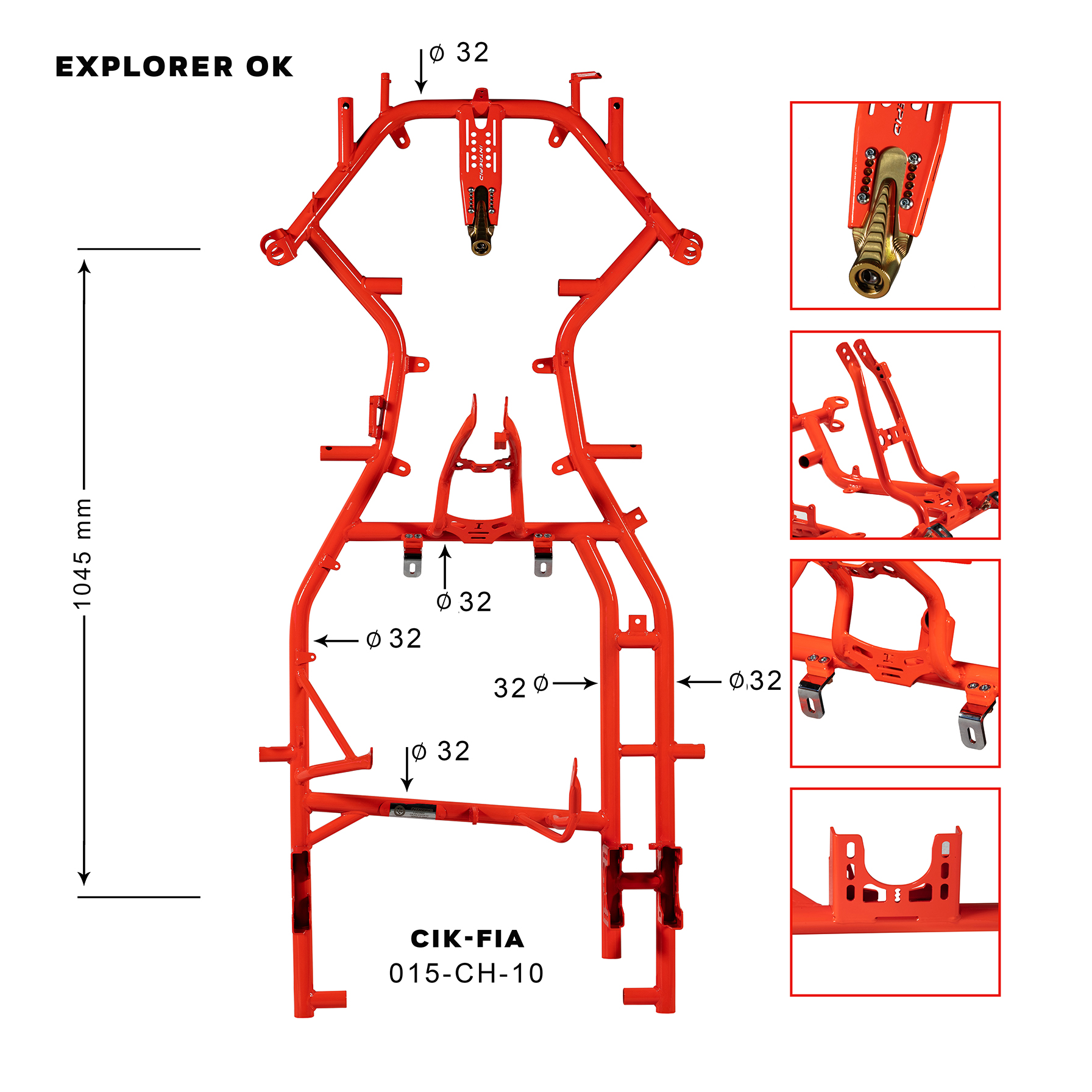

FRAME DESCRIPTION:
NOUSE: chromium tube Ø32mm
SIDE: chromium tube Ø32mm
CENTRAL CROSS PIECES: chromium tube Ø32mm
REAR CROSS PIECES: chromium tube Ø32mm
WHEELBASE: 1045mm
