CHASSIS OK/JR - OK mod.MATRIX tube Ø30-32mm wheelbase 1048mm CIK/FIA 015-CH-65 *** MAGNESIUM CONFIGURATION*** MOD. 2026
INT0103009
CHASSIS DESCRIPTION

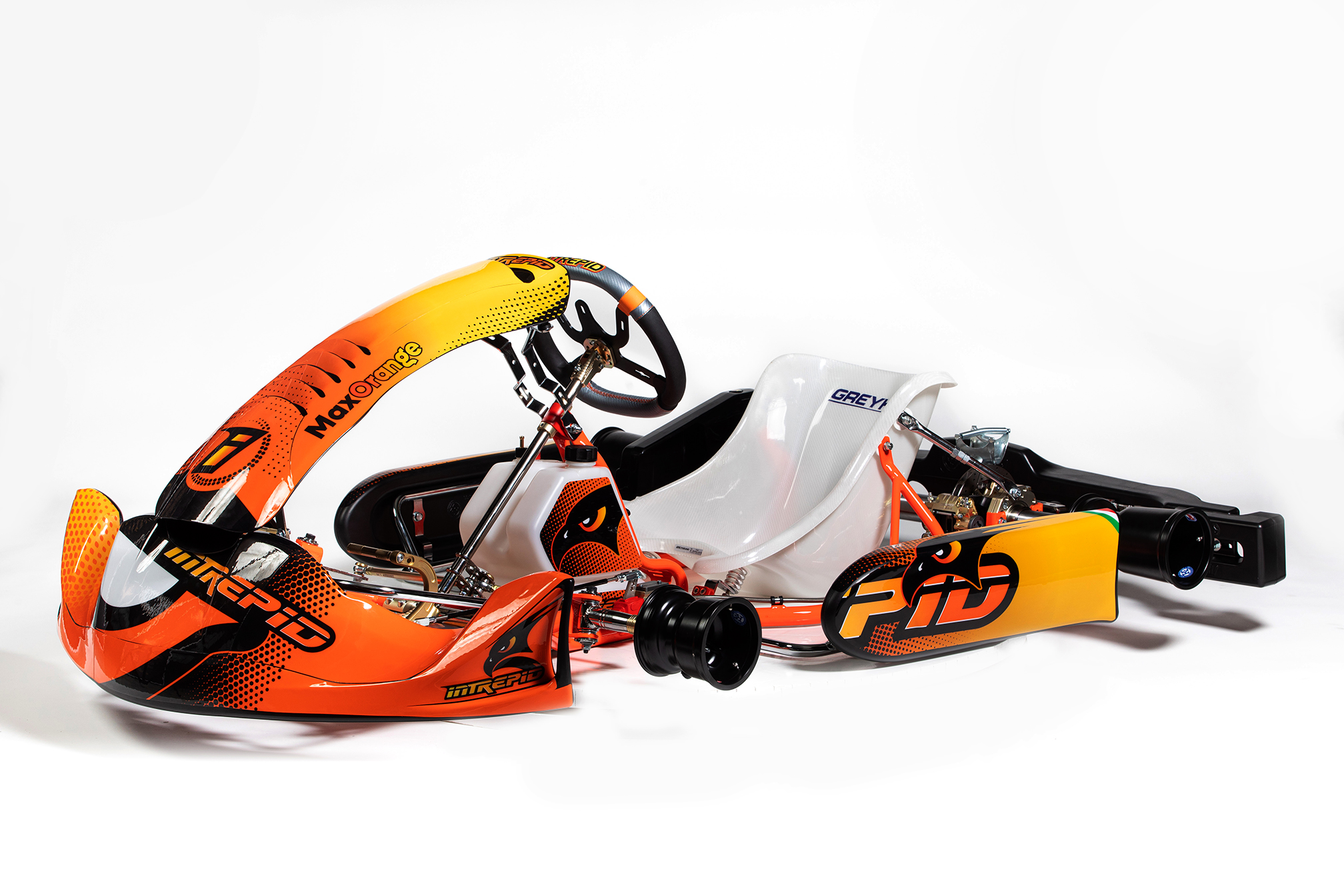

The MATRIX chassis is a high-performance vehicle suitable for tracks with little grip, thanks to the frame composed of Ø30 tubes excluding the rear crossbar composed of Ø32 tubes. The magnesium version makes the chassis lighter and guarantees more consistent performance, especially in seasons with high temperatures. In addition, the magnesium bearing support favour load transfer in bends.
MAGNESIUM COMPONENTS: Bearing bush supports, front hubs, rear hubs, sprocket support.
DOWNLOAD TECHNICAL SHEET
STANDARD CONFIGURATION:
- BODYWORKS mod.509 col. BLACK with REAR SPOILER
- STICKERS KIT for BODYWORKS mod.509
- REAR BRAKE SYSTEM mod.R6K CIK/FIA 015-B2-06
- AXLE Ø50x1030mm - mod.T2 - MEDIUM
- REAR HUB Ø50x90mm - CH.6mm - MAGNESIUM
- FRONT HUB mod.OK L.80mm - BEARING Ø25mm - MAGNESIUM
- MAGNESIUM WHEEL RIMS L. 132/212 with HOLES - BLACK
- FLOOR PLATE mod.OK with STICKERS INTREPID MOD. 2026
- SEAT RACING SILVER (size 2 30,5cm.)
- STEERING WHEEL mod.ANATOMIC with LAP TIMER SUPPORT INTEGRATED
- ALLUMINIUM PEDALS MODEL 2026
- BEARING BUSH SUPPORT Ø50mm - MAGNESIUM
- SPROCKET SUPPORT Ø50 - MAGNESIUM
FRAME DESCRIPTION:
NOUSE: chromium tube Ø30mm
SIDE: chromium tube Ø30mm
CENTRAL CROSS PIECES: chromium tube Ø30mm
REAR CROSS PIECES: chromium tube Ø32mm
WHEELBASE: 1048mm.
