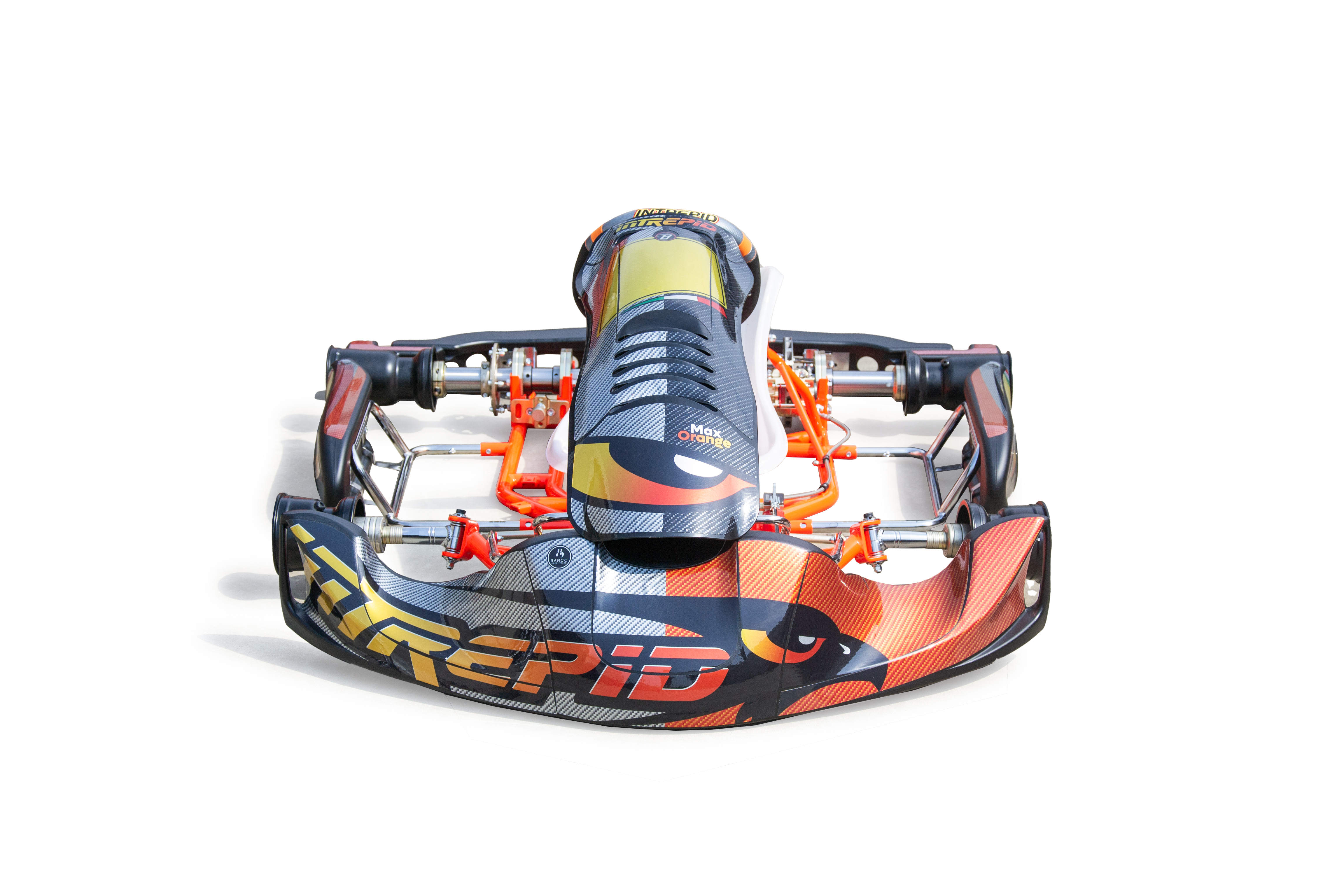

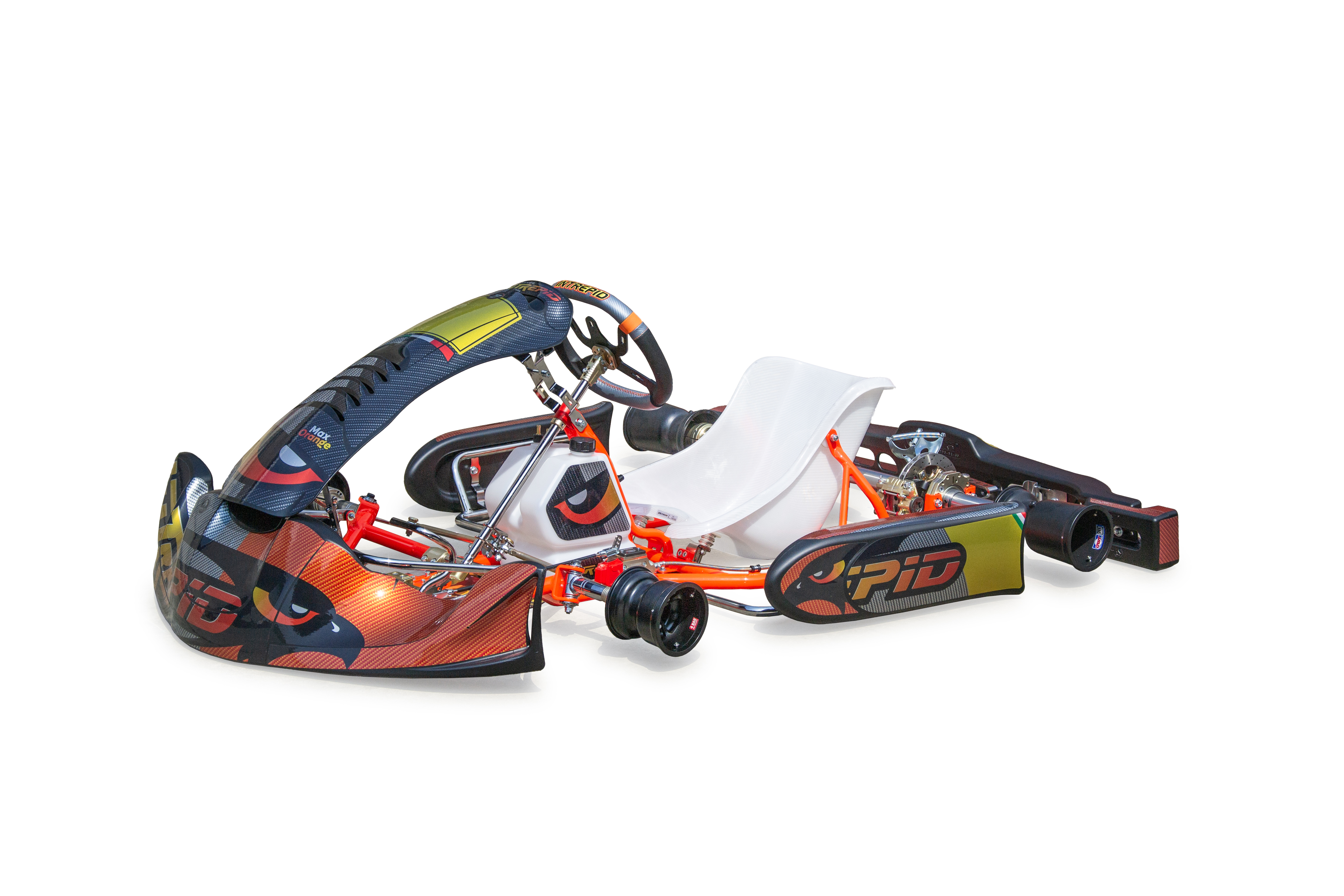

CHASSIS OK/JR - OK mod.CRUISER MS3 tube Ø30mm WHELLBASE1048mm CIK/FIA 015-CH-60 - NEW HOMOLOGATION 2025/27
INT0101048
CHASSIS DESCRIPTION:
The CRUISER MS3 chassis, is the most consolidated INTREPID model, thanks to the frame composed of Ø30 tubes, it is suitable for medium tyres tracks. It guarantees excellent performance with medium/soft tyres.
Suitable for the categories OK, OK JUNIOR, OKN, OKN JUNIOR and all single-gear categories.
DOWNLOAD TECHNICAL SHEET
FRAME DESCRIPTION:
NOUSE: chromium molybdenum tube Ø30mm
SIDE: chromium molybdenum tube Ø30mm
CENTRAL CROSS PIECES: chromium molybdenum tube Ø30mm
REAR CROSS PIECES: chromium molybdenum tube Ø30mm
WHEELBASE: 1048mm.
STANDARD CONFIGURATION:
- BODYWORKS mod.507/508 col. BLACK with REAR SPOILER
- STICKERS KIT for BODYWORKS mod.507/508
- REAR BRAKE SYSTEM mod.R6K CIK/FIA 015-B2-06
- AXLE Ø50x1030mm - mod.T2 - MEDIUM
- REAR HUB Ø50x90mm - CH.6mm - ALUMINIUM
- FRONT HUB mod.OK L.80mm - BEARING Ø25mm - ALUMINIUM
- MAGNESIUM WHEEL RIMS L. 132/212 with HOLES - BLACK
- FLOOR PLATE mod.OK with STICKERS INTREPID
- SEAT RACING SILVER (size 2 30,5cm.)
- STEERING WHEEL in ALCANTARA - 4 SPOKES
- STEERING COLUMN - 490x28mm
- SPEENDLES Ø25mm 10,25° mod.H1K OK
- ADJUSTABLE FOOTREST SYSTEM - ALUMINIUM
- PEDAL CHROME PLATED STEEL
- HIGH QUALITY ALUMINUM COMPONENTS
